XM-6010 FR Reflective tape

  • flame retardant reflective tape xm 6010 gallery 1
  • flame retardant reflective tape xm 6010 gallery 2
  • flame retardant reflective tape xm 6010 gallery 3
  • flame retardant reflective tape xm 6010 gallery 5
  • XM 6010 Technical Specification
  • fr reflective tape xm 6010 gallery 8
  • flame retardant reflective tape xm 6010 gallery 7

Flame Resistant – Yellow-Silver Reflective tape – 100% Cotton

  1. Sew-on
  2. Glass beads: Ra>450
  3. 100% Cotton FR
  4. Roll size: 5cm x 100m
  5. 100x wash at 60°C (140°F)
  6. 50x wash at 75°C (167°F)
  7. 30x wash at 92°C (198°F)
  8. 30x dry clean
  9. EU certification: EN 20471, EN 469
  10.   USA certification: NFPA 2112, 1971
  11.   Brazil certification: NBR 15292

Yellow-Silver FR reflective trim offers flame retardant protection certified by NFPA 2112 & EN 469. It is made for FR-clothing and Firefighters uniform. This tape resists to Heat and Fire and keeps its High Visibility. It can be sewn onto FR-jackets, pants or turnout gear.

This Reflective Material is a Textile Fabric coated with a layer of resin with numerous glass micro-lenses impregnated with a special glue into this layer. The light reflects from these micro-lenses and comes back to a car (or other source of light) making the person wearing reflective tape more visual in the dark.

Weight0.0272 kg



Colour & Width

Yellow 5 cm / Silver 2 cm

Reflectivity, R

HS code (NCM code)


Volume, CBM (1 box)

0.0365 CBM

1 roll length

100 meters

1 roll weight

2.7 kgs

Number of rolls in 1 box

10 rolls

Weight netto of 1 box

27 kgs

Weight brutto of 1 box

27.6 kgs

Total meters in 1 box

1000 meters


, , , , ,


, ,

This reflective tape has been tested and certified after the following number of wash cycles:

100x Wash (Domestic) at 60°C
50x   Wash (Industrial) at 75°C
30x   Wash (Industrial) at 92°C
30x   Dry clean
XM-6010 Care Instructions

Wash: Machine Wash Hot, 60°C

Bleach: Do not bleach

Dry: Tumble Dry Low

Dry-clean: Dry clean, PCE (Petroleum Solvent) only

Iron: Iron at Low temperature, 110°C
Keep in cool dry place, with no direct sunlight
FR-clothing or HighVis clothing with this reflective tape should be washed and cleaned by the above recommendations.

3M 9687/9587/9187, 100% Aramid (Nomex)

New Oeko-tex 100 Certificate for our reflective tapes

New Oeko-tex 100 Certificate for our reflective tapes

OEKO-TEX Standard 100 is the world's most famous and demanded product quality standard in the world. Since 1992, the certificate guarantees a high degree of safety of yarn, fabrics or textiles for health and the environment. Products that are certified to this standard were manufactured either without the use of harmful chemicals (cadmium, nickel, formaldehyde, azo dyes, pentachlorophenol, etc.), or with their minimum, safe for health use. In April 2019, (Read more...)

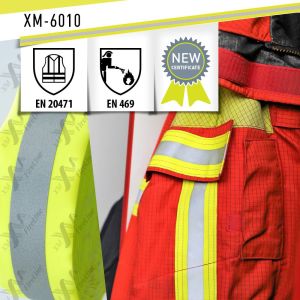

Flame retardant reflective tape XM-6010 renewed EN 469 and EN 20471 Certificate

Flame retardant reflective tape XM-6010 renewed EN 469 and EN 20471 Certificate

Flame retardant reflective tape is the most popular and demanded in the assortment of the company XM SilverLine. It is designed for firefighter clothing and high visibility clothing. This year, this reflective tape has expired certificate validity for compliance with the standards EN469 and EN20471. That is why we sent a reflective tape from a new batch for testing to the SATRA laboratory in the UK. As a result, all (Read more...)
OEKO-TEX Standart 100

Oeko-tex 100 for XM SilverLine reflective tapes

At the end of March 2017, XM SilverLine™ reflective tapes have been certified to Oeko-Tex STANDARD 100 (Class III Safety) in Testex AG (Swiss Textile Testing Institue). Oeko-tex certificate was developed in 1992 and soon became a quality label witnessing that no harmful substance been used in a fabric, accessories or in a ready made garment. We are proud that our products conform to the strict criteria of the International (Read more...)
xm 6010 abnt news

Reflective tape XM-6010 certified to NBR 15292

The most popular flame retardant reflective tape XM-6010, which is used to create protective clothing for people who work with open fire or risk of fire, reaffirmed its high quality. Laboratory AITEX (Spain) a lot of time doing research XM SIlverLine's reflective and protective tapes and other textile products XM Textiles. In September and October 2016 tests of retardant reflective tape XM-6010 were held. According to their results, this tape (Read more...)
fr workwear nfpa

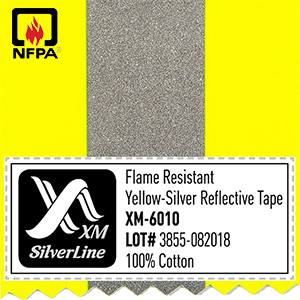

Reflective tape XM-6010 passed NFPA 1971

Reflective tape XM-6010 has been certified to North American standard for FR-clothing. XM SilverLine™ produces reflective tape for firefighters, oil workers and other professionals. Our partner lab AITEX (Spain) helps us to test our reflective tapes to EN and NFPA standards. In September 2016, AITEX has tested reflective tape XM-6010 according NFPA 1971:2013. The tape has passed all the tests. Positive results of testing confirm full compliance to NFPA. From (Read more...)
FR Reflective tape XM-6010 has passed NFPA 2112 after 100 wash

FR Reflective tape XM-6010 has passed NFPA 2112 after 100 wash

August 2014, AITEX lab (Spain) has tested Reflective tape XM-6010 to NFPA 2012 after 100 domestic wash at 60°C. This Yellow-Silver reflective tape is made with Flame retardant cotton, which does not ignite after one hundred wash cycles. The reflective tape can be sewn onto fr clothing such as firefighters uniform, turnout gear, emergency team uniform, as well as to industrial flame retardant apparel. XM SilverLine™ proves its quality by (Read more...)
XM-6010 (Corsica) certified to EN 20471 & EN 469

XM-6010 (Corsica) certified to EN 20471 & EN 469

Our flame resistant reflective tape XM-6010 has been developed by XM SilverLine for maximum visability and protection of fire fighters and oil/gas workers. In February 2014 this fr-tape has obtained the certificate EN ISO 20471:2013 and EN ISO 469:2005. These standarts regulate quality and requirements for reflective tape and fire-resistant materials for Europian market of PPE. The tests were conducted by the SATRA Technology Centre in United Kingdom and all (Read more...)
